CONNECTION CABINETS



Connection cabinets are connected to the public power supply grid and measure the power consumption on construction sites. The solutions differ according to the regional TAB requirements of the particular supply area. If the PSC connection and the measuring device need to be accommodated separately due to the design of the construction site power network, connection cabinets are used.

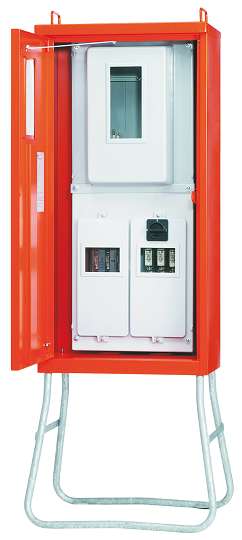

Connection cabinet - inside view

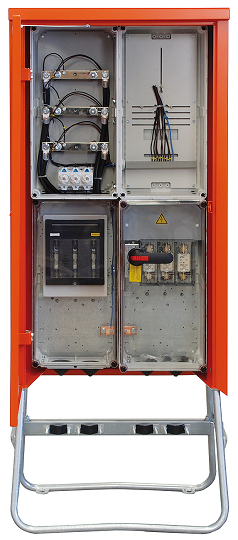

Connection cabinet with direct measurement

Technical equipment

  • Housing made from electrolytically galvanised sheet steel
  • Underframe full bath hot-dip galvanised, with welded struts and eyelets for ground nails
  • Labyrinth forced ventilation to protect against condensation
  • Swivel crane eyelets
  • Heavy metal-free plastic paint in RAL 2004 - pure orange - or as per the RAL colour chart
  • Maximum length of the connecting cable to the measuring device: 30 m
  • Protection category: IP 44
  • Measuring device: IP 54
  • Special distributors and designs are available for non-standard requirements
