Easier and better in every way:
The new NEO CEE plugs and sockets are characterized by a wealth of practical and innovative optimizations. Three product variants were developed for different requirements: Classic, One-Touch and IPD.
Maximum user benefits
Product Video CEE NEO
Product benefits

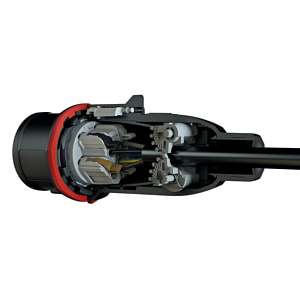

One-Touch Closure System
- A quarter turn connects the front and rear parts and automatically activates the interior strain relief in a single operation
- Audible feedback on locking
- No material fatigue on the strain relief, tension acts on the cable

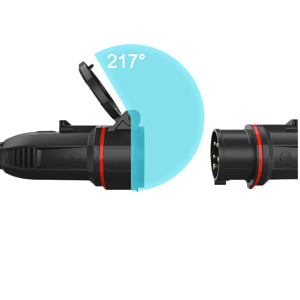

Optimised Cover Design
- Wider opening angle of the coupling cover for force shearing in the event of mechanical resistance
- Easy connection of the plug and coupling, since the cover can be held perfectly in the open position
- Improved geometries all round ensure greaterhousing stability

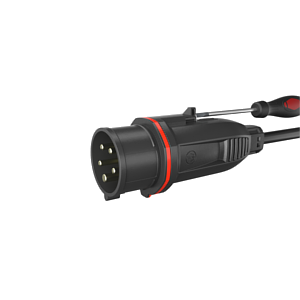

Simple housing opening
- No wear on the closure mechanism with multiple use
- Intuitive user guidance
- Horizontal working angle excludes the risk of injury if the screwdriver slips

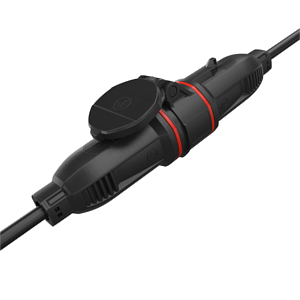

Innovative Design
- Unique product design
- Coloured ring for voltage labelling as per standard requirements

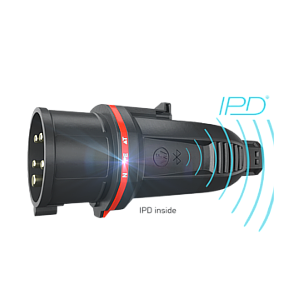

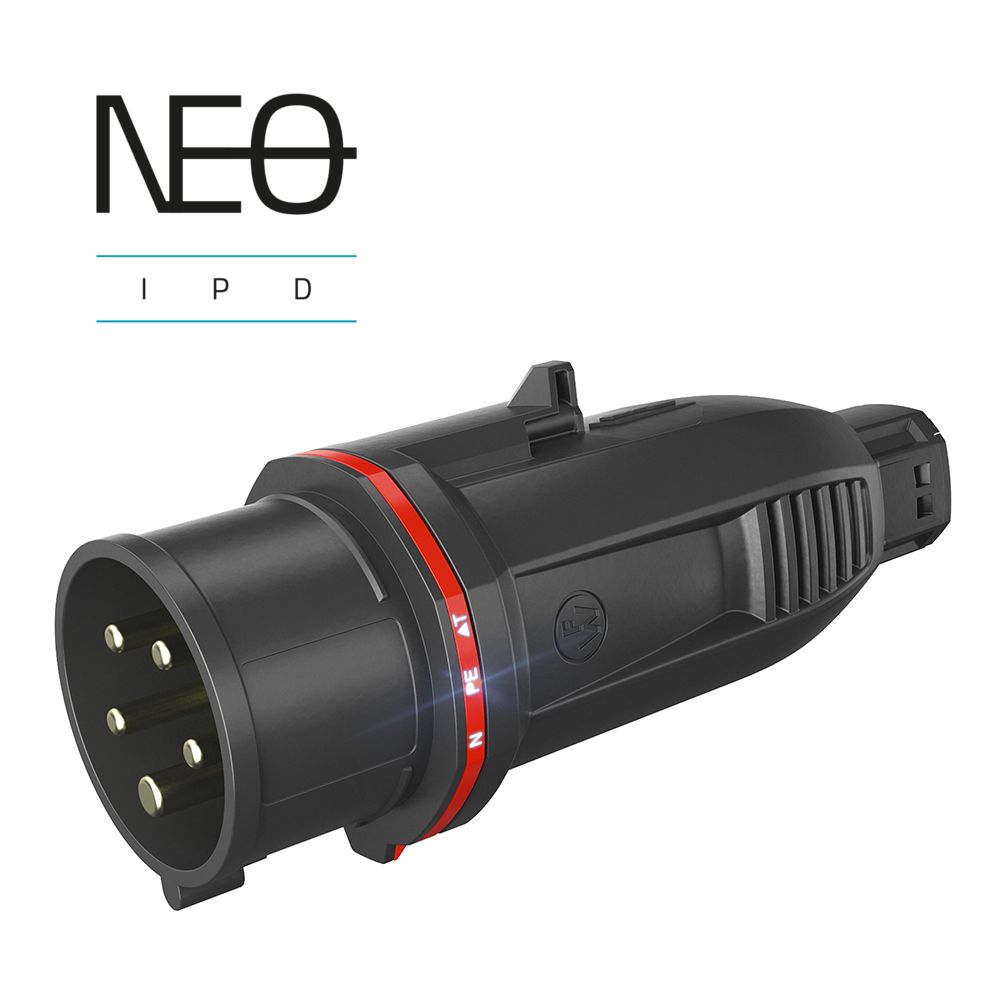

IPD System integration
- The first intelligent CEE plug connection with the ability to transfer operating status via integrated PCBs and Bluetooth

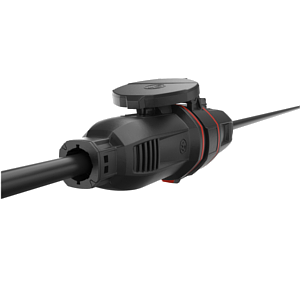

Increased standard protection
- Increase in the standard protection category from IP44 to IP54 (dust protection)
- Additional version in IP67

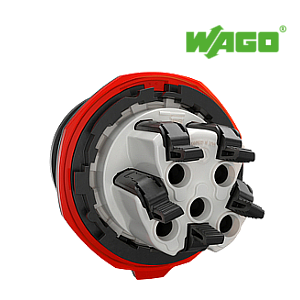

Improved Connection Technology
A cage tension spring (CAGE-CLAMP®) enables a screwless connection and saves time during assembly. The ease of use of the terminal clamp lever and the frequent reconnection has proven itself internationally. WAGO's CAGE-CLAMP® connection technology has gained worldwide acceptance with all major international approvals.

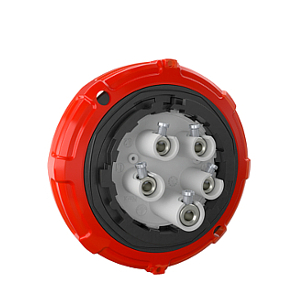

The use of Torx screws on the screw contact ensures optimum power transmission and a longer life of the screw heads.
Screwless connection with cage tension spring
Screw connection with
Torx screws
The right solution for every application

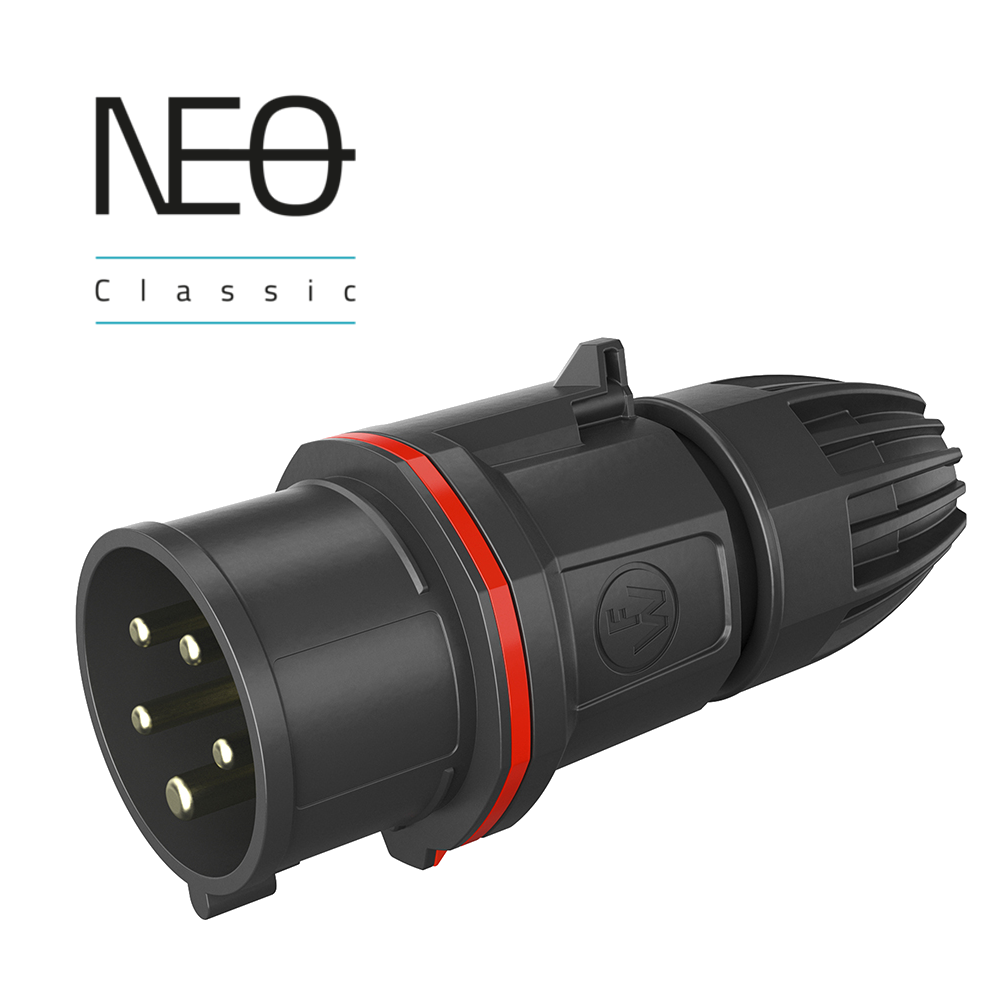

for classic Applications
Traditional product exhibition with external strain relief at the smallest possible size

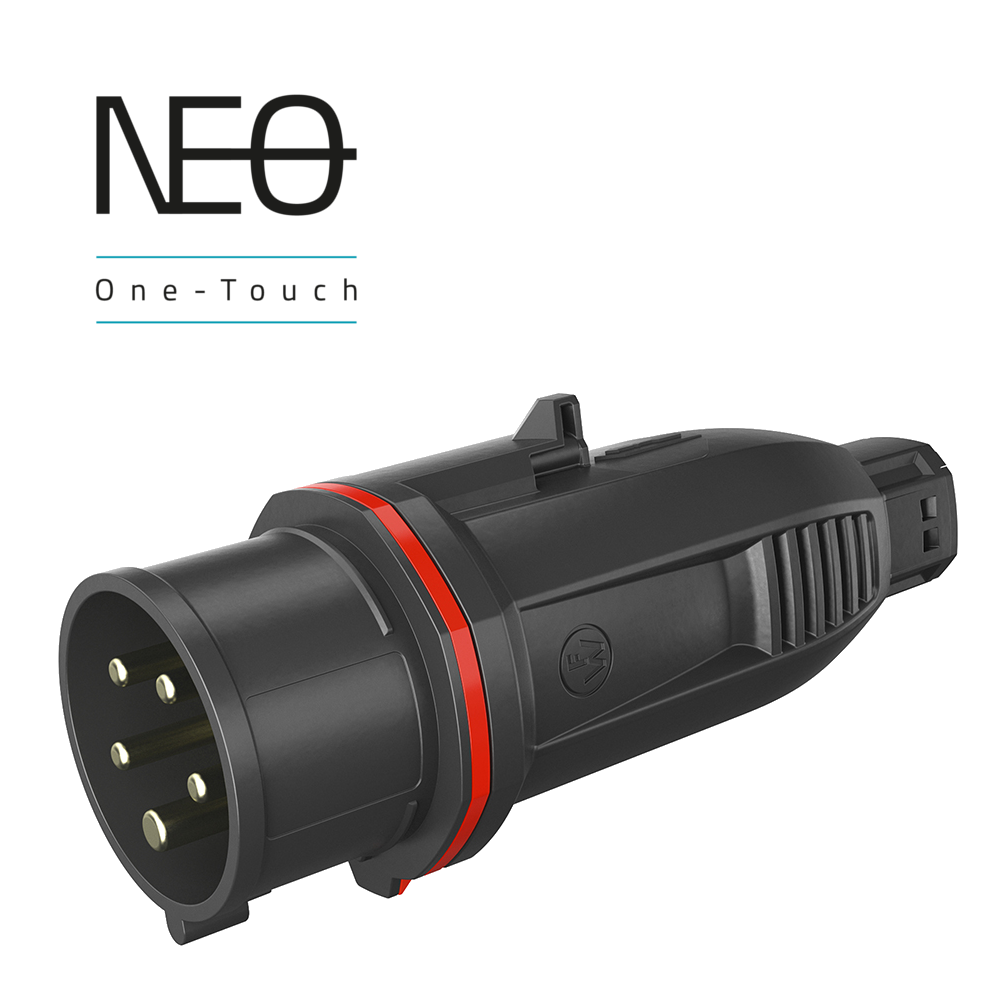

For Professional Applications
Optimized for fast assembly and reconnection, maximum operational safety
for the future-oriented application
Developed for IoT applications with data collection and data transfer
Downloads
- NEO - More than a plug 25 MBThe evolution of CEE plug and socket devices
- Quick Start GuideCEE NEO plugs and connectors
